Quick Answer
Chimney crown damage affects the brick and mortar by allowing rain, snow, and ice to enter the top of the chimney rather than shedding water. In Toronto, cracked, flat, loose, or deteriorated crowns can lead to spalling brick, failing mortar joints, leaks, rust staining, freeze-thaw damage, and loose upper chimney masonry. The crown should be checked early because it protects one of the most exposed parts of the chimney.
The chimney crown is the top surface that helps direct water away from the chimney opening and brickwork. When in good condition, it helps protect the upper courses of brick, mortar joints, flue area, and the nearby cap system from direct water exposure.
When the crown is cracked, poorly sloped, deteriorated, loose, or breaking apart, water can move into the chimney from the top. That water may not stay visible at the crown. It can travel into mortar joints, soak brick faces, move behind the chimney exterior, or show up later as interior staining near the fireplace or ceiling.
This guide explains how chimney crown damage affects brick and mortar, why it matters for Toronto homes, what signs homeowners should watch for, and when crown repair may not be enough on its own.
What Is a Chimney Crown?
A chimney crown is the masonry or concrete top surface that covers the upper part of the chimney and helps shed water away from the flue and brickwork. It is different from a chimney cap, although both help protect the chimney from moisture.
The crown usually sits at the top of the chimney and should direct water outward. A chimney cap usually covers the flue opening. The cap helps reduce rain, debris, and animal entry into the flue, while the crown protects the masonry surface at the top.
Both parts matter. If the cap is fine but the crown is cracked, water can still enter the masonry. If the crown is solid but the cap is missing, water and debris can still enter the flue. A healthy chimney needs the cap, crown, brick, mortar, and flashing areas to work together.
Otto’s Masonry’s chimney repair Toronto page covers common chimney issues, including cracked brick, failing mortar, crown concerns, caps, leaks, leaning stacks, repointing, brick replacement, and chimney rebuilding when needed.
Why Chimney Crown Damage Is Serious in Toronto
Chimney crown damage is serious in Toronto because chimneys sit above the roofline and are directly exposed to rain, snow, wind, ice, and freeze-thaw cycles. A small crown crack can become a larger water path when it is exposed to repeated winter weather.
Toronto chimneys often go through cycles of wetting, freezing, thawing, and drying. Water enters small openings during rain or snowmelt. When temperatures drop, that trapped water freezes and expands. Over time, this can widen cracks, break mortar joints, loosen brick faces, and increase chimney deterioration.
For larger chimney repairs, rebuilds, or structural changes, homeowners should also understand that rules may apply. The Ontario Building Code is the official provincial source for building code information, while the City of Toronto building permit guide explains that permits may be required for chimney or fireplace installation and reconstruction.
Simple crown maintenance may not be the same as reconstruction, but homeowners should ask questions when the chimney is unstable, partly rebuilt, structurally altered, or part of a larger repair project.

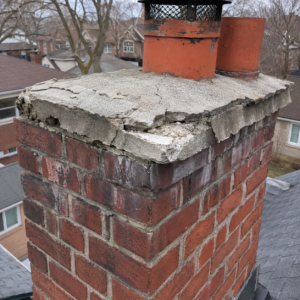

Common Signs of Chimney Crown Damage
Chimney crown damage often starts with cracks, surface wear, poor drainage, or visible water staining near the top of the chimney. Some signs can be seen from the ground with a zoomed photo, while others require a safe roof-level inspection.
Homeowners should watch for:
- Cracks across the crown surface.
- Loose, chipped, or missing crown material.
- A flat crown that lets water sit instead of draining away.
- Water stains near the top of the chimney.
- White staining, often called efflorescence, on the upper brickwork.
- Spalling brick faces below the crown.
- Cracked, recessed, sandy, or missing mortar joints.
- Rust staining from nearby metal components.
- Damp smells near the fireplace after rain.
- Water marks on ceilings, walls, or chimney-adjacent areas inside.
- Fallen pieces of mortar, brick, or crown material near the roofline or ground.
A hairline crack in a crown may not mean the chimney is failing, but it should not be ignored. If water is entering through that crack, the brick and mortar below may begin to deteriorate over time.
How Crown Damage Lets Water Into Brick and Mortar
Crown damage lets water into the brick and mortar by opening paths at the very top of the chimney. Once water enters from above, gravity and capillary movement can carry moisture down into joints and brick faces.
Water may enter through:
- Cracks in the crown surface.
- Open gaps around the flue area.
- Missing or loose crown material.
- Poorly sloped crown surfaces that hold water.
- Edges that do not direct water away from the brick face.
- Past patch repairs that have separated or failed.
The damage may not appear immediately. Water can slowly soak the upper chimney, first breaking down the mortar joints. Later, brick faces may start to flake or spall. By the time a homeowner notices pieces of brick or mortar falling, the moisture problem may have been active for more than one season.

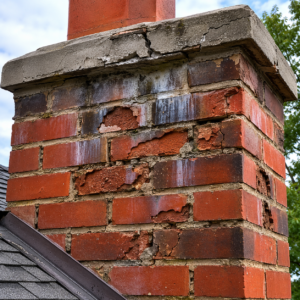

How Crown Damage Causes Brick Spalling
Crown damage can cause brick spalling when water enters the upper chimney, soaks the brick faces, and then freezes within the masonry. Spalling means the face of the brick flakes, chips, pops, or breaks away.
Spalling often appears below damaged crowns because water tends to enter from the top and move downward. The upper courses of brick are especially vulnerable because they are highly exposed to the weather and usually dry more slowly when moisture continues to enter from above.
Signs of crown-related brick spalling include:
- Flaking brick faces near the top of the chimney.
- Small brick chips on the roof or ground.
- Rough, pitted, or hollowed brick surfaces.
- Spalling that appears worse after winter.
- Water staining above or around the damaged brick.
- Spalling combined with cracked mortar joints.
If the spalling is limited to a few bricks and the crown issue is corrected early, targeted repair may be enough. If many upper bricks are failing, the chimney may need broader repair or partial rebuilding. Otto’s guide to what causes brick spalling on Toronto homes explains how moisture, freeze-thaw cycles, salt, drainage, and material compatibility can affect brick damage.

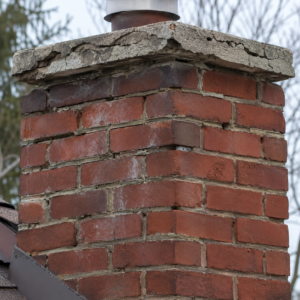

How Crown Damage Weakens Mortar Joints
Crown damage weakens mortar joints by allowing water to enter the chimney crown and repeatedly wet the joints below. Mortar joints are often the first place water damage becomes visible.
Mortar damage may appear as:
- Cracked horizontal or vertical joints.
- Recessed joints that sit far back from the brick face.
- Soft, sandy, or crumbling mortar.
- Open gaps between bricks.
- Loose mortar pieces after winter.
- Stair-step cracking on the chimney stack.
- Water stains follow joint lines.
When mortar joints fail, more water can enter the chimney. This creates a cycle: crown damage lets water in, mortar joints weaken, more water enters, and freeze-thaw cycles worsen the damage.
If the bricks remain mostly sound but the joints are deteriorating, tuckpointing in Toronto may be needed to remove weak mortar and restore the joints. If the crown remains damaged, however, tuckpointing alone may not last because water can continue to enter from above.

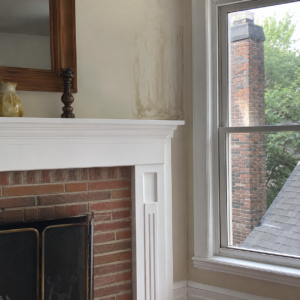

How Crown Damage Can Lead to Chimney Leaks
Crown damage can lead to chimney leaks when water enters through cracks, gaps, or poorly drained crown areas and travels into the chimney system. The leak may show up inside even if the exterior damage looks small.
Interior warning signs can include:
- Damp smells near the fireplace.
- Water stains on nearby walls or ceilings.
- Staining around the fireplace opening.
- Peeling paint near the chimney area.
- Rust on fireplace components.
- Moisture appears after heavy rain or snowmelt.
Not every chimney leak is caused by the crown. Flashing, caps, mortar joints, brick faces, and roof connections can also allow water in. This is why the crown should be inspected as part of the full chimney system, not as an isolated surface.
How Crown Damage Connects to Chimney Cap Problems
Chimney crown damage and chimney cap problems often appear together because both are part of the chimney’s top-side water protection. If either one fails, moisture can enter the chimney or soak the upper masonry.
A damaged crown may allow water to enter around the flue or soak the top brick courses. A damaged or missing cap may allow rain, snow, debris, or animals into the flue opening. If both are damaged, the chimney is exposed from multiple paths.
Homeowners may find Otto’s guide on chimney cap problems that lead to masonry damage useful, as cap and crown issues often need to be assessed together when upper chimney moisture damage is present.

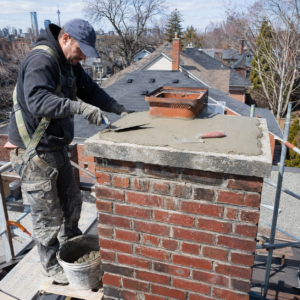

Repair Options for Chimney Crown Damage
Repair options depend on the crown’s condition, chimney stability, the extent of water damage, and the condition of the brick and mortar below. A small crown crack is not the same as a broken crown with loose upper brickwork.
Possible repair options include:
- Crack repair: Used when crown cracks are limited, and the crown is otherwise stable.
- Crown resurfacing: Used when the crown surface is worn but not structurally failed.
- Crown replacement: Needed when the crown is cracked deeply, breaking apart, flat, loose, or not shedding water.
- Cap correction: Needed when cap issues also allow water or debris into the chimney.
- Tuckpointing: Needed when mortar joints below the crown are cracked, recessed, or missing.
- Brick replacement: Needed when bricks are spalled, cracked, or loose.
- Partial chimney rebuild: Needed when the upper chimney is too deteriorated for surface repairs.
- Full chimney rebuild: Needed when widespread instability, leaning, or severe deterioration is present.
If brick faces have already failed, brick repair in Toronto may be required. If the upper chimney is badly damaged or unstable, Otto’s guide to chimney repair vs chimney rebuilding in Toronto can help homeowners compare localized repair with larger rebuilding options.
When Crown Repair May Be Enough
Crown repair may be enough when the crown damage is minor, the upper chimney is stable, and the brick and mortar below have not been badly affected. This is more likely when the issue is caught early.
Crown repair may be suitable when:
- Cracks are small and limited.
- The crown is still mostly intact.
- The chimney is not leaning or loose.
- Brick faces below the crown are not badly spalling.
- Mortar joints remain mostly firm.
- There are no interior water stains.
- The cap and flashing areas are in good condition.
Even when crown repair is enough, the surrounding masonry should still be checked. The crown may be the visible problem, but moisture may have already reached the joints below.
When a Larger Chimney Repair May Be Needed
A larger chimney repair may be needed when crown damage has already spread into the brick, mortar, cap area, flashing, or interior surfaces. In these cases, fixing only the crown may not solve the full problem.
A larger repair may be needed when:
- Several upper chimney bricks are spalling.
- Mortar joints are deeply cracked, loose, or missing.
- The crown is breaking apart or no longer sheds water.
- The chimney cap is missing, rusted, loose, or damaged.
- Interior water stains appear near the chimney.
- The chimney is leaning, separating, or visibly loose.
- Brick or mortar pieces are falling from the chimney.
- Previous crown patches have failed.
If the chimney is unstable or pieces are falling, homeowners should avoid using the area around it until it is assessed. A damaged chimney above the roofline can create safety concerns, especially when loose masonry is present.

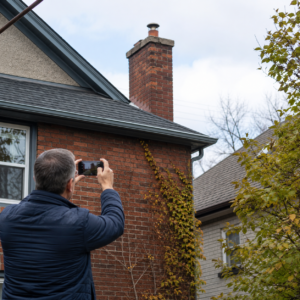

What Homeowners Can Safely Check Themselves
Homeowners can safely assess chimney crown damage from the ground using visible signs, zoomed-in photos, and interior moisture clues. The goal is to notice possible problems without climbing onto the roof.
Check these items:
- Look for visible cracks or missing material near the top of the chimney.
- Use phone zoom from a safe location to check the crown area.
- Look for spalling brick near the upper chimney courses.
- Check for cracked, recessed, or missing mortar joints.
- Look for water stains, rust marks, or white staining on the chimney.
- Check inside for damp smells, fireplace staining, or ceiling marks near the chimney.
- Look for fallen pieces of mortar, brick, or crown material after storms or winter.
- Note whether damage becomes more visible after rain, snowmelt, or freeze-thaw weather.
Do not climb onto the roof, lean ladders against damaged chimney masonry, or try to chip away crown material. Roofline chimney work should be handled with proper safety equipment and experience.
When to Call a Mason
You should call a mason when the chimney crown is cracked, loose, flat, deteriorated, leaking, or connected to brick spalling, failing mortar, rust staining, cap problems, or interior water marks. Crown damage should be checked before moisture spreads deeper into the chimney.
Call sooner if bricks or mortar pieces are falling, the chimney looks loose or leaning, or the damage appears worse after winter. These signs may mean the chimney needs more than a simple crown repair.
Otto’s Masonry provides masonry services in Toronto, including chimney repair, crown repair, cap repairs, tuckpointing, brick replacement, masonry restoration, and chimney rebuilding when needed. The right repair should protect the chimney’s crown and address any brick or mortar damage that has already begun.
FAQs About Chimney Crown Damage
How does chimney crown damage affect brick and mortar?
Chimney crown damage lets water enter from the top of the chimney. That moisture can soak brick and mortar, freeze during cold weather, and cause spalling brick, cracked joints, loose masonry, and leaks.
What are the signs of a damaged chimney crown?
Signs include crown cracks, missing material, poor drainage, water stains near the top of the chimney, spalling brick, failing mortar joints, rust staining, damp smells, or interior water marks near the chimney.
Is a chimney crown the same as a chimney cap?
No. The chimney crown is the masonry or concrete top surface that sheds water away from the chimney. The chimney cap usually covers the flue opening to help keep out rain, debris, and animals.
Can a cracked chimney crown cause leaks?
Yes. A cracked chimney crown can allow water to enter the chimney system, resulting in damp smells, fireplace staining, ceiling marks, or moisture around the chimney after rain or snowmelt.
Can crown damage cause brick spalling?
Yes. If water enters through a damaged crown and freezes inside the brick, the brick face can flake, crack, or break away. This is common on exposed Toronto chimneys after freeze-thaw cycles.
Can tuckpointing fix chimney crown damage?
Tuckpointing can repair failing mortar joints below the crown, but it does not fix the damaged crown itself. If the crown keeps letting water in, mortar repairs may fail again.
When should I call a mason for chimney crown damage?
Call a mason when the crown is cracked, loose, deteriorated, flat, leaking, or connected to spalling brick, failing mortar, water stains, falling masonry pieces, or chimney movement.
Final Answer
Chimney crown damage affects brick and mortar by allowing water to enter the chimney from the top. In Toronto, that moisture can freeze, expand, and lead to spalling brick, cracked mortar joints, leaks, rust staining, loose masonry, and larger chimney repairs.
The practical takeaway is to treat crown damage as a water-control problem, not just a surface crack. If the crown is damaged but the brick and mortar are still sound, crown repair may be enough. If the surrounding masonry is already failing, the chimney should be assessed as a full system.
